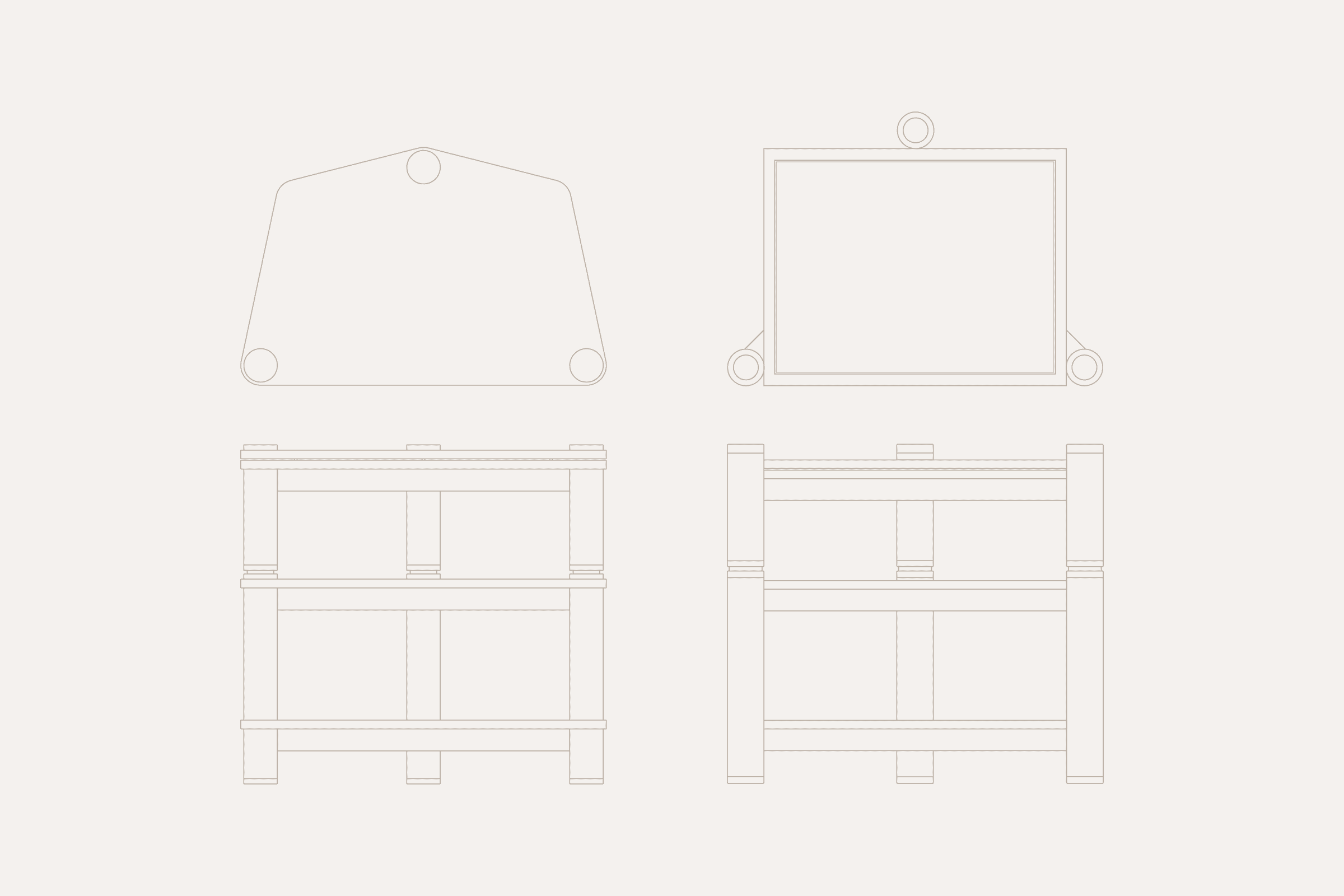

G Series line drawing

Specifications

G Series Equipment Tables

Technical Specifications & Measurements.

Basic performance specifications for the G-Series tables are listed below.

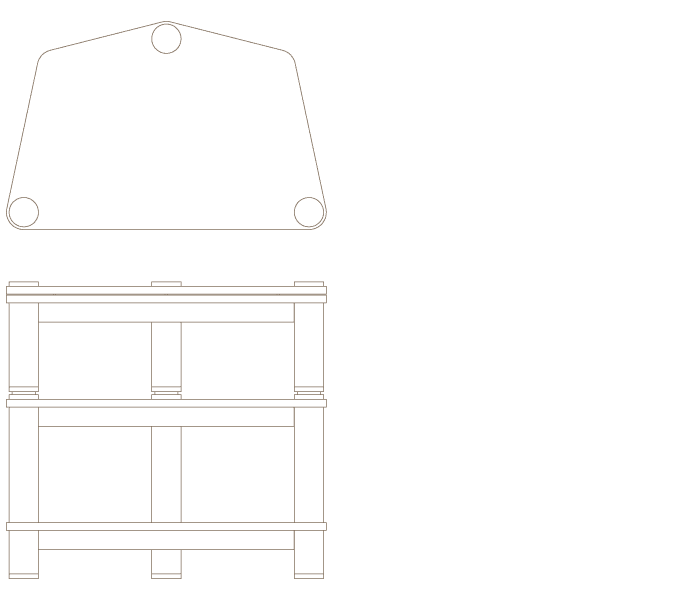

G2 Three Level Resonance Control Equipment Table

G2Frame & Shelves:
  • Independent upper and lower sections to isolate source components from amplifier components.
  • Split level two part construction in fine-ply beech wood and aluminium.
  • Adjustable resonance control for fine tuning and system optimisation.
  • Split lower shelf to isolate left and right channels when using mono amplifiers.
  • Finished to order in any RAL colour with matching anodised leg compression caps.
Optional Extras:
  • Extra level with matching frame and matching shelf.
  • CD or record deck super-platform.
  • Solid bottom shelf for stereo power amplifier
  • Built exclusively to order to bespoke dimensions.
Suggested Dimensions:
  • External dimensions:
    W 93cm × D 65cm × H 90cm.
  • Internal frame dimensions:
    W 75cm × D 55cm.
  • Useable shelf height:
    Lower shelf 25cm. Middle shelf 20cm.

G3 Three Level Resonance Control Equipment Table

G3Frame & Shelves:
  • Monocoque construction for optimised energy control.
  • Split level two part construction in fine-ply beechwood and aluminium with compliant damping membrane.
  • Adjustable resonance control for fine tuning and system optimisation.
  • Split lower shelf to isolate left and right channels when using mono amplifiers.
  • Finished to order in any RAL colour with matching anodised compression caps.
  • Shelves: Natural fine-ply beech with double layer and compliant damping membrane for source components.
  • Bottom shelf made in two sections to accommodate mono amplifiers.
  • Finished to order in any RAL colour with matching anodised leg compression caps.
Optional Extras:
  • Extra level with frame and matching shelf.
  • CD or record deck super platform with damping strip.
  • Solid bottom shelf for stereo power amplifier.
  • Built exclusively to order in any size or finish.
Suggested Dimensions:
  • External dimensions:
    W 93cm × D 65cm × H 90cm.
  • Internal frame dimensions:
    W 75cm × D 55cm.
  • Useable shelf height:
    Lower shelf 25cm. Middle shelf 20cm.
